超微6048R-E1CR60N存储服务器
60 Hot-swap 3.5" SAS3/SATA3 drive bays + 2 rear 2.5", 6 opt. NVMe
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP)
2. Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
3. 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
4. SIOM for flexible networking options
5. 60x 3.5" Hot-swap SAS3/SATA3 drive bays; 2x 2.5" rear Hot-swap SATA drive bays; optional 6 NVMe bays
6. LSI 3108 SAS3 HW RAID controller
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 5x 8cm hot-swap redundant PWM fans PWM fans
9. 2000W Redundant Power Supplies Titanium Level (96%) Certified
10. Front 3.5" LCD display

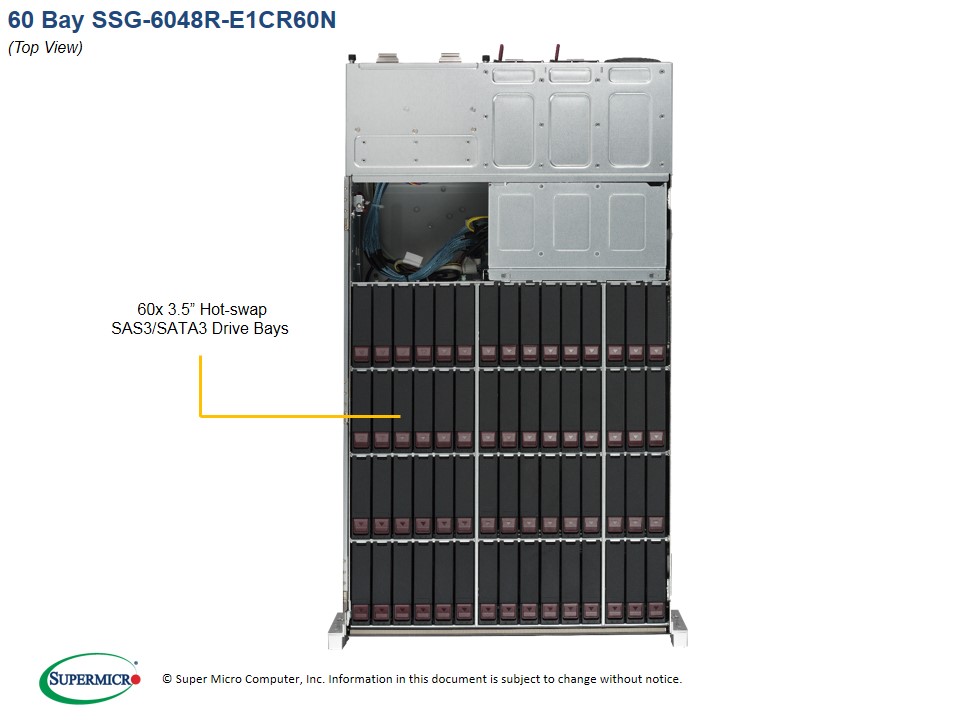

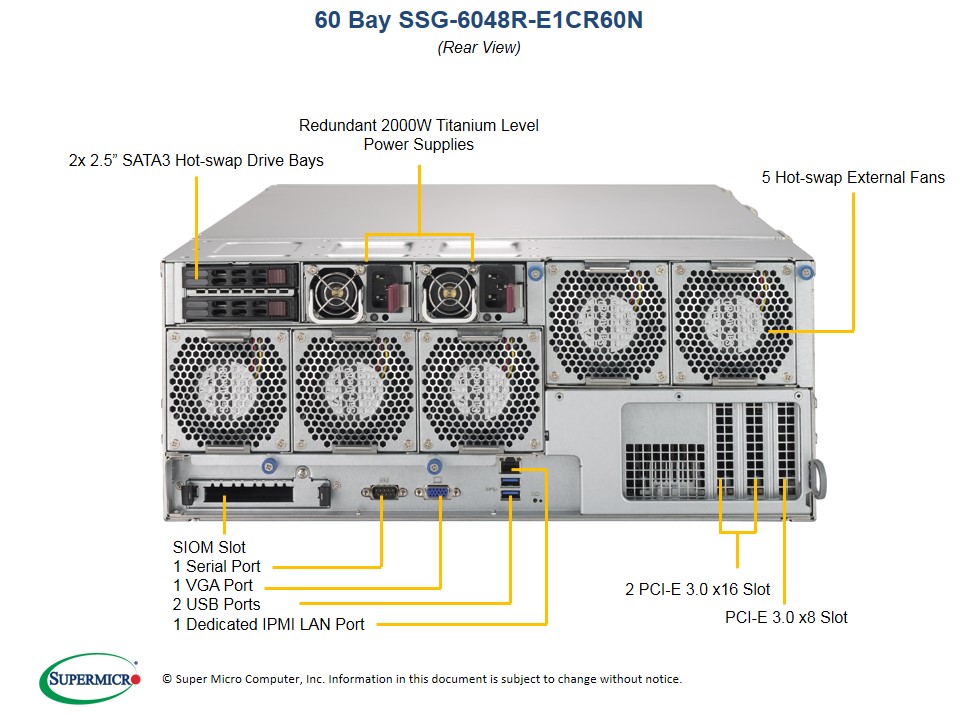

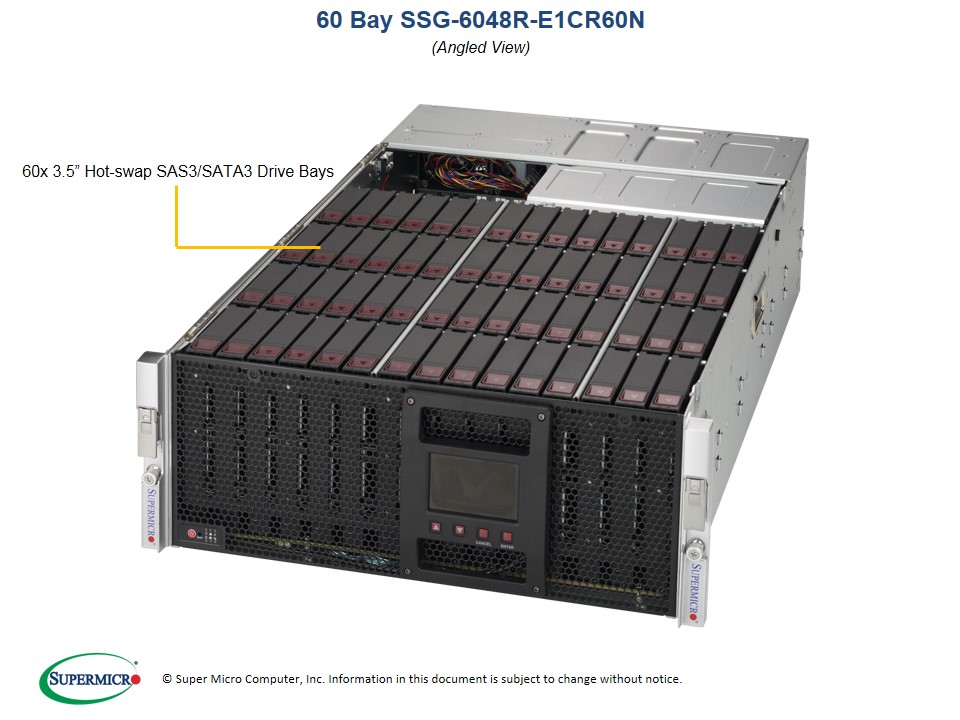

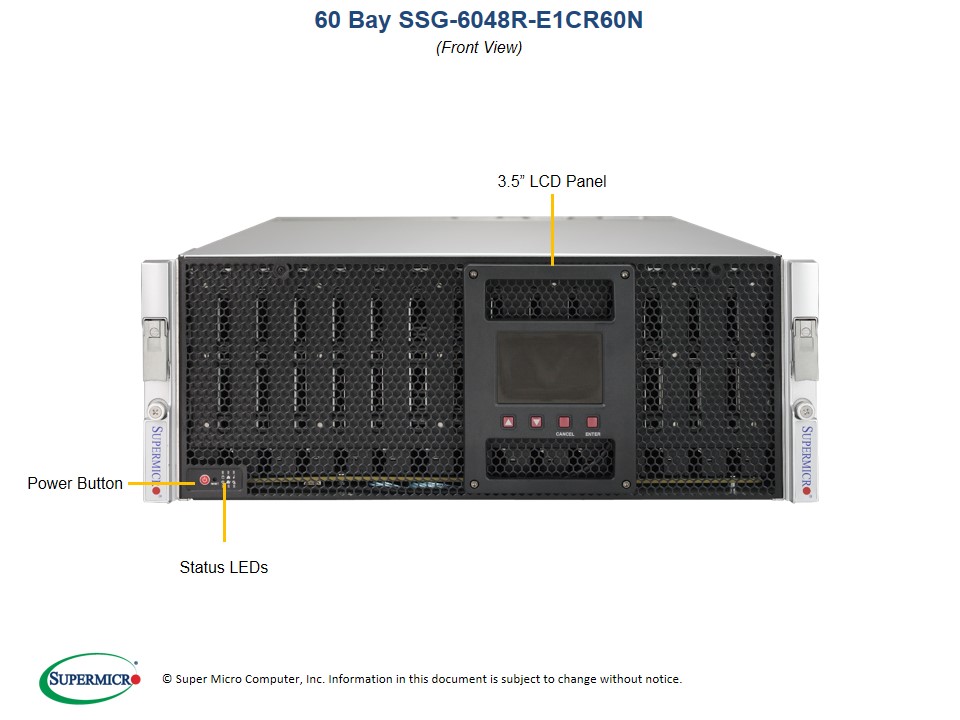

超微6048R-E1CR60N存储服务器外观结构图:
